VALVE
Hi-tek Brand industrial heavy duty valves are designed various application to handle different types of flowing mediums in paper, Textiles, Sugar, Power, Petrochemicals, Chemical plants, Thermal Power Stations, Food processing industries, Fertilisers, Water works etc.

Hi-tek PNEUMATIC DIAPHARGM VALVE
SIZE
:
 Available from 3/4" to 6" line size
Body material
:
 Globe type, S type pattern for valve bodies. As per the nature of fluid, the materials are:

BODY MATERIAL
PRESSURE
TEMPERATURE
CAST STEEL
600 PSI
400oC
CAST IRON
150 PSI
220oC
Hi-tek PNEUMATIC DIAPHARGM VALVE
End connections: Mostly Flanged type & can be drilled as per the required standards.
Packing: Asbestos, telfon or graphited asbestos Spring loaded teflon, V cups self compensating type for stream packing.
Diaphargm: Neoprene rubber with canvas insertion
Chamber mat: Pressed steel & C.I.
Actuator: Direct acting, Spring return type Air to open OR Air to close.
Types: 2 way, type for ON/OFF operations
3 way type for MIXING / DIVERTING operations.
Special feature: There is the Heat Radiating section on the bonnet, with evenly spaced efficient radiating fins, Saves the actuator from the effects of heat from the pipeline.

Hi-tek Plug Characteristics:
To meet various types of flow control characteristics, following types of plug designs are available:
a.
 Quick opening plug, skirt guided for quick opening & closing of valves. Ideal for ON-OFF type of controlling action.
Hi-tek Plug Characteristics
b.
 V port hollow skirt plug, skirt guided. This type of plug is having linear characteristics and is recommended for modulating type of controls.
c.
 Quick opening plug, top & bottom guided.
d.
 V port hollow skirt plug, top & bottom guided.
e.
 Counter plug, top & bottom guided having linear or equal percentage characteristics.

Hi-tek MOTORISE BUTTERFLY VALVE
"Hi-tek" Actuated butterfly valves are motor actuated & pneumatically actuated butterfly valve.
Size
:
 2" to 8" line size.
Type
:
 Wafer type.
Best feature
:
 Easy mounting, low maintenance.
Hi-tek MOTORISE BUTTERFLY VALVE

Hi-tek GLOBE VALVE HD - 40
Size
:
 Globe valves are available in 1" and 6" line size
Constructional features
Body mat
:
 Cast steel & cast iron Internal working parts of stainless steel
Bolted type Bonnet working Pressure 150 class
Hi-tek GLOBE VALVE HD - 40

Hi-tek MOTORISED CONTROL VALVE
Size
:
 Available form 1" to 4" lins size.
Hi-tek MOTORISED CONTROL VALVE
Construction features
Body material
:
 Cast steel, Cast iron as per requirement. Internal working parts of stainless steel, Bolted bonnet.
End connections
:
 Flanges can be drilled as per BS, ANSI, DIN & ISS Standard.
Actuator
:
 Electric motor type
Current
:
 AC, 230V, 50Hz
Valve Action
:
 ON to open OR ON to close
BODY MATERIAL
PRESSURE
TEMPERATURE
CAST STEEL
600 PSI
400oC
CAST IRON
150 PSI
220oC
Types
:
 2 Way for ON / OFF operation
3 Way for Diverting / mixing operation
Salient features
:
 - Long life of actuator

- Low maintenance

- minimum flow resistance
Hi-tek PNEUMATIC CYLINDER VALVE
Size
:
 Available in 3/4" TO 4" line size
Hi-tek PNEUMATIC CYLINDER VALVE
Construction features
:
 - Body materials are cast iron, Cast steel etc.

- S.S. working parts

- Bolted bonnet

- Flanges can be drilled as per BS, ANSI, DIN & ISS
Actuator
:
 Pneumatic Cylinder type Cylinder-piston operated
Valve Action
:
 Air to open or Air to close
    - Working pressure 600 psi
    - 2 Ways type
    - Our Products also illustrate mini pneumatic cylinder valve

Hi-tek MINI PNEUMATIC DIAPHARGM VALVE
Size
:
 Available in 1" to 3" line size.
Hi-tek MINI PNEUMATIC DIAPHARGM VALVE
Construction features
:
 - Body materials are Cast iron & Cast steel etc.

- Unless specified otherwise internal parts are of S.S.

- The seatring & plug are replacable separately

- Working pressure 250 psi
Actuator
:
 Mini diaphargm actuator direct acting, spring return Air to open or Air to close.
Chamber material
:
 Pressed steel cast iron.
Diaphargm
:
 fabric rain forced neoprene rubber.

Hi-tek POWER CYLINDER
"HI-TEK POWER CYLINDER" are Suitable for pressure up to 10kg / cm2 with adjustable cushions at both ends.
Construction Features
Cylinder tube
:
 - Hard drawn brass tube for 20, 25, 40, 50 mm bore
Hi-tek POWER CYLINDER

- Hard chrome plated steel tube for 65, 75, 100, 125, 150, 200, 250, 300 & 400 mm
Piston rod
:
 M.S. ground & hard chrome plated
End cover
:
 Cast iron
Piston
:
 Cast iron
Seal
:
 Nitride elastomer
Media
:
 Air oil & inert gases
Temp.
:
 0oC to 85oC
Pressure
:
 150 psi
Action
:
 Air to pull or Air to push

Hi-tek SOLENOID VALVE
Types
:
 direct acting solenoid valve 2 & 3 way.
Hi-tek SOLENOID VALVE
Size
:
 1/4" & 1/2" Bsp/npt Sizes are available
Working pressure
:
 0 - 150 psi
Working temperature
:
 200oC
Medium
:
 Air, Water, inert gases
Body material
:
 Aluminium brass & stainless steel.

Hi-tek BALL VALVE
Hi-tek's quarter turn, lever operated ball with blowout proof steam, microfinished, precision lapped and flouting action ball and profile machined PTFE seats ensure bubble tight shut off.
Size
:
 1/2" & 4" line size.
Hi-tek BALL VALVE
Type
:
 Available in one piece, two piece & three piece.
Body material
:
 Cast iron, cast steel & SS. with S.S ball & teflon seated.
End Connection
:
 Screwed & flanged ends type.
Illustration
:
 "Hi-tek" double acting pneumatic rotary actuated ball valves are also available.

Hi-tek GATE VALVE
Size
:
 15 mm to 300 mm in 150 and 300 rating.
Hi-tek GATE VALVE
Constructional features
:
 - O.S. & Y type rising steam bolted bonnet

:
 - With precision machined lapped seats and wedges with differential hardness which ensure scoring and galling free performance. Back seat facilitates replacement to gland packing of in line valves under pressure.
End Connection
:
 S.W., screwed or flanged ends.
Note
:
 Our modification in gate valves is cylinder actuated gat valve.

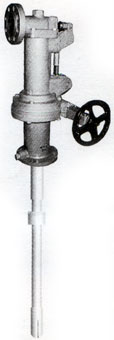

Hi-tek SHUIT BLOWER VALVE
Application
:
 In oil fired or in coal fired boiler
Hi-tek SHUIT BLOWER VALVE
Working
:
 Carbon dust & ash collected on the internal tubes of boiler which is removed & cleaned by spray of pressurized steam. This spray of steam is produced by shu it blower valve. So, heat transfer of boiler increases & thus the efficiency of boiler is increased.
Working Pressure
:
 Steam shuit blower valve sets at 10 kg/cm2 pressure.
Body material
:
 Gray casting
- Internal helical gear used for open, shut or blow operation of valve.
